HAYASHIMU Moving Walkway
Model: HE-M01
| Parameter | Specification |
|---|---|
| Max Length | 120 m (Horizontal), 60 m (Inclined) |
| Width | 1000 mm (Standard), 1400 mm (Wide) |
| Speed | 0.5 m/s (Standard), 0.65 m/s (High-Capacity) |
| Slope | 0° to 12° (Adjustable) |
| Capacity | 9,000 pax/hr (1000mm), 13,000 pax/hr (1400mm) |
| Drive System | Regenerative Gearless Traction (VVVF) |
| Energy Use | 4.8 kW/30m section (Avg. load) |
| Compliance | EN 115-1:2017, ASME A17.1, ADA, CE |
Product Details
HAYASHIMU Moving Walkway
Moving walks (travelators, passenger conveyors) accelerate vertical transportation and horizontal movement in high-traffic spaces. These systems efficiently transport people across distances while reducing fatigue – essential in commercial buildings, airports, transit hubs, shopping malls, and large residential buildings like luxury apartments or campuses.
Engineering for Mass Transit Efficiency
-
High-Capacity Design: Handles 9,000+ passengers/hour with widths of 1,000 mm (single) or 1,400 mm (double lane).
-
Configurable Layouts:
-
Horizontal: For terminals/stadiums (up to 100 m length)
-
Inclined: Up to 12° slope for multi-level vertical transportation in high-rise buildings
-
-
Drive Systems:
-
Gearless Traction: Regenerative VVVF drives cut energy consumption by 35% vs. geared systems
-
Modular 90 kW motors (1 per 30 m section)
-
-
Advanced Pallet Belts:
-
Interlocking aluminum/composite pallets
-
Anti-slip diamond tread surfaces
-
Zero-gap entry/exit zones
-
-
Safety & Compliance:
-
Comb-plate sensors & emergency stop buttons
-
Handrail speed synchronization (±0.2 m/s)
-
EN 115 / ASME A17.1 certified
-
Model Spotlight: MetroFlow Series Moving Walk
| Parameter | Specification |
|---|---|
| Max Length | 120 m (Horizontal), 60 m (Inclined) |
| Width | 1000 mm (Standard), 1400 mm (Wide) |
| Speed | 0.5 m/s (Standard), 0.65 m/s (High-Capacity) |
| Slope | 0° to 12° (Adjustable) |
| Capacity | 9,000 pax/hr (1000mm), 13,000 pax/hr (1400mm) |
| Drive System | Regenerative Gearless Traction (VVVF) |
| Energy Use | 4.8 kW/30m section (Avg. load) |
| Compliance | EN 115-1:2017, ASME A17.1, ADA, CE |
Critical Applications
-
Airports/Terminals: Accelerate passenger flow between gates (e.g., Dubai Int'l, Changi T3)
-
Shopping Malls: Connect retail zones across multi-level commercial buildings
-
Metro Stations: Reduce transfer times in underground complexes
-
Hospital Complexes: Transport patients/visitors between wings
-
Convention Centers: Move crowds between exhibit halls
-
Large Residential Buildings: Link towers in luxury complexes
Premium Elevator Components for Reliability
-
Hardened steel trusses (150+ year fatigue life)
-
IP65-rated gearless motors (maintenance-free for 8+ years)
-
Fail-safe electromagnetic brakes
-
UV-resistant rubber handrails
-
Real-time IoT monitoring (vibration, temp, load)
Energy-Smart Vertical Transportation
• Regenerative drives feed 25% braking energy back to grid
• Sleep mode activation during low traffic
• LED step-level lighting (0.5W/linear meter)
• Eco-speed adjustment (±0.1 m/s) based on sensor traffic

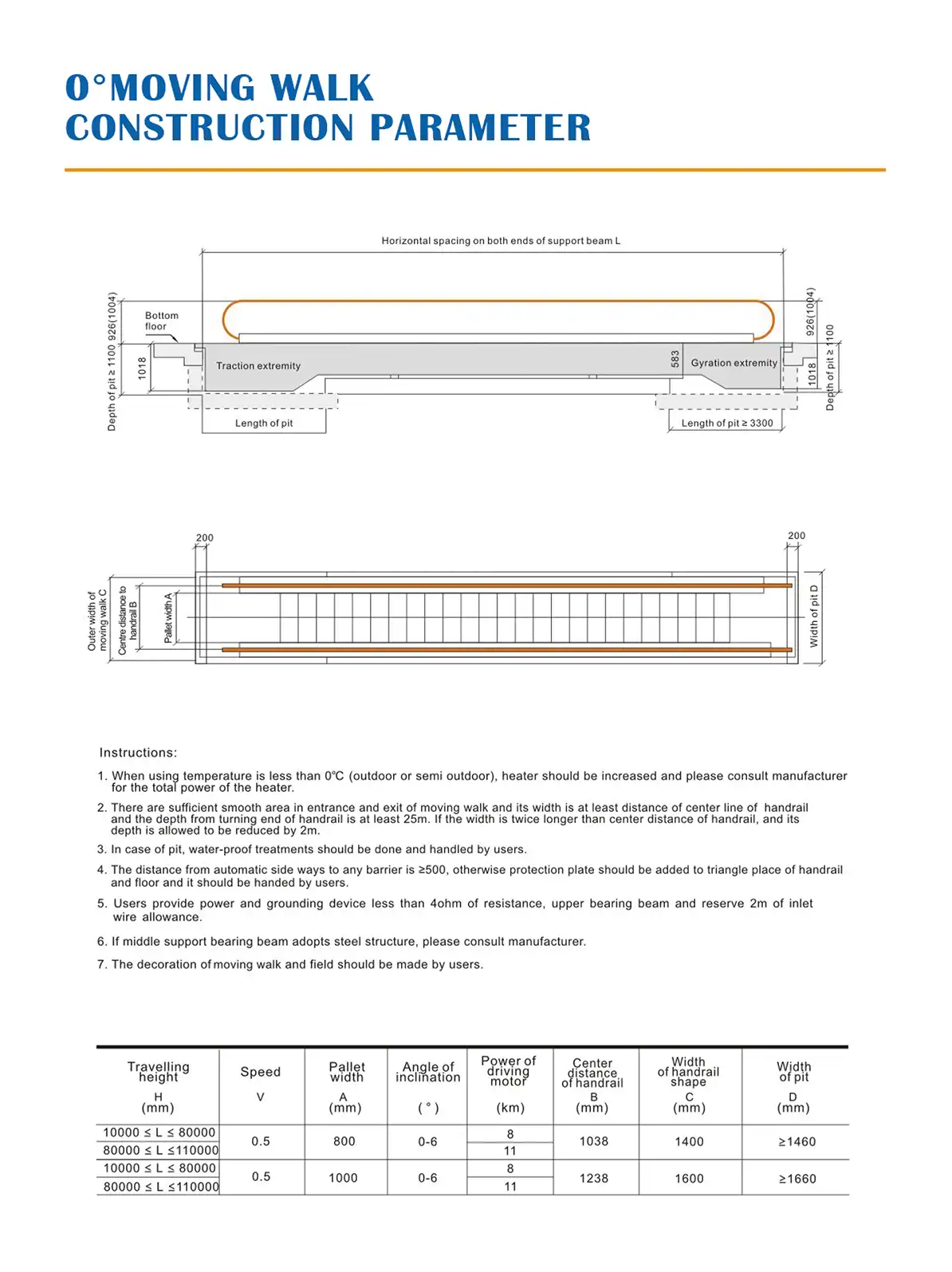

Drawings & Parameters:
